FeeDaa® is a manufacturer of Fast Wire Cable Connectors | 1 in 2 out PCT-253 in China. We have more than ten years of experience in the field of terminal terminals and the specifications and WAGO models are complete, For example, series 221, 222, 2273, etc. Excellent quality and good price. It is available in both wholesale and retail markets.Welcome to purchase and cooperate, Please rest assured to choose us, and we will provide the best service!

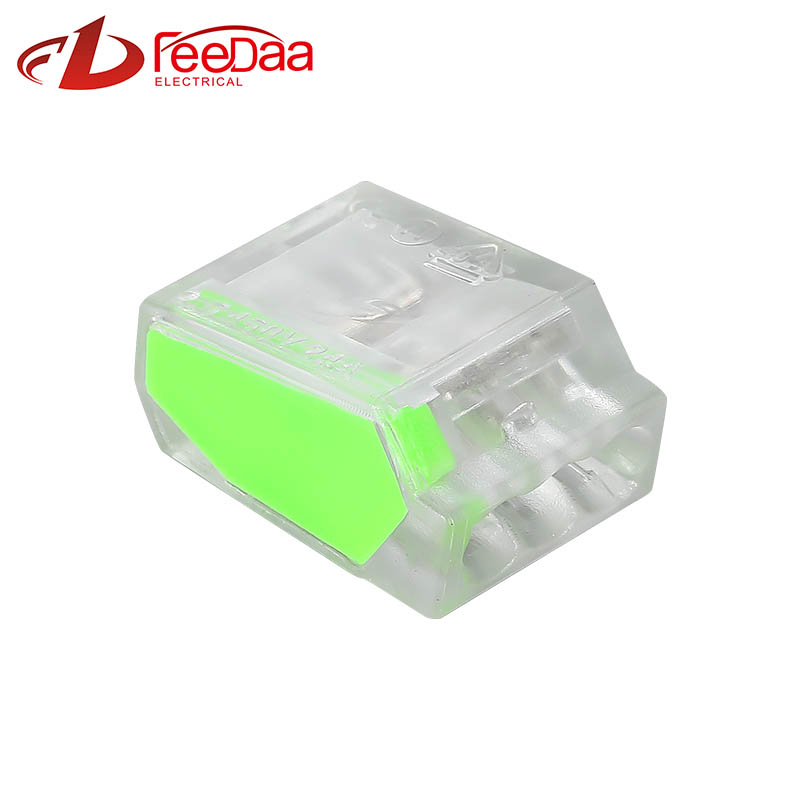

FeeDaa® specializes in producing the Fast Wire Cable Connectors | 1 in 2 out PCT-253, the connector shell is made of flame-retardant nylon PA66/PC new material, and the inner guide is made of all copper. It can be used for both soft and hard wires, with 1 in and 2 out, and the wiring range is 0.75-2.5mm² (Single hard conductor), 1.5-2.5mm² (Multi-strand hard conductor), safer, more convenient, and faster than traditional wiring methods in the past.
Safe and Durable: The shell of the FeeDaa® cable connector is made of flame-retardant nylon PA66/PC new material to prevent wire leakage and explosion. Corrosion resistance, aging resistance, and long service life. The built-in copper can be used at an ambient temperature of 110℃ and has better conductivity.
Efficient and convenient: Fast wiring, no tools required, no damage to the core wire. Simply peel off approximately 12 mm of the wire casing, open the handle to 90 °, insert the wire into the connection port, and press the handle with your hand to complete the wiring. There is no need to worry about twisting between wires. The FeeDaa® connector will make work easier and wiring more aesthetically pleasing.
Compatibility: FeeDaa®'s Fast Wire Cable Connectors| 1 in 2 out PCT-253 can be used for both soft and hard wires, making it ideal for compact and complex applications. Suitable for single strand hard wire 0.75-2.5mm ², Multi-strand hard conductor 1.5-2.5mm ².
|
Model number |
PCT-253 |
|
Electrical parameter |
400V/4kV/24A |
|
Stripping length |
12mm |
|
Specification size |
13.5*19.7*9.7mm |
|
Applicable conductor |
Single hard conductor: 0.75-2.5mm2 Multi- hard conductor: 1.5-2.5mm2 |
|
Material |
Flame resistant Nylon PA66, also available in PC material,Copper trim |
|
Color |
Various color handles available for selection |
|
customized |
Accept customization |
|
Brand Name |
FeeDaa |
|
Place of Origin |
China |
|
Market |
Global |
|
Minimum Order Quantity |
100pcs |
|
Packaging Details |
poly-bag,carton box |
|
Delivery Time |
3- 20days |
|
Payment Terms |
T/T, Paypal, Western Union, etc |
WAGO 773 series quickly wire connector | 1 in 2 out PCT-253, commonly used scenarios include lighting, electronics, elevators, cars, equipment, household appliances, electrical control systems, etc.
Note: this type of internal conductor connected with each other ,the current exchange inlet can only be connected with the same property of the wire (such as fire wire or zero wire).
1.Q: Are you manufacturer or trade company?
A:We are manufacturer and specialized in wire connector more than 10 years
2.Q: Can you provide samples ? Are the samples free?
A: Yes, we can provide free samples if quantity not too much but pay delivery fee before delivery
3.Q: Can you make customized products and customized packing?
A: Yes. We made a lot of customized products for our customer before. About customized packing, you send packing details and dimension, we will calculate packing fee.
4.Q: What kind of payment do you accept? Can I pay RMB?
A: We accept T/T and PayPal (100% before delivery）, And you can pay money In RMB.
5.Q: How to ship my order?
A: For small package, we will send it by Express, such as DHL, FedEx, UPS, TNT, EMS. That's a Door to Door service. For big packages, we will send them by Air or By sea or railway transportation.
