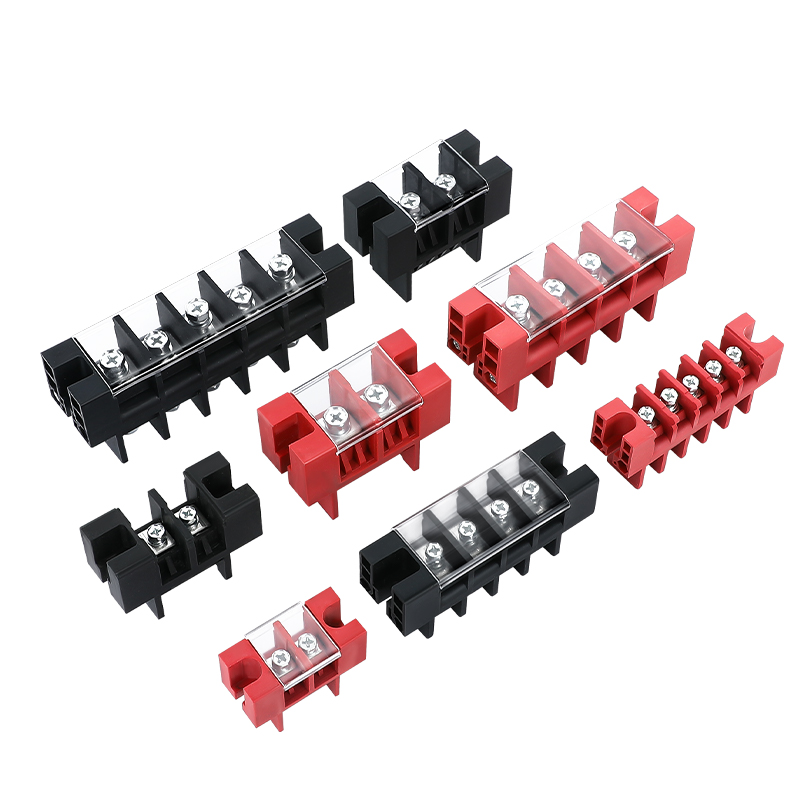

-* * Through type terminal block * *: Product name, also known as through type or wall terminal block
-* * 50A~150A * *: Rated current range, belonging to high current terminals
-H62 brass conductor: The internal conductor material is H62 brass, which has good conductivity and corrosion resistance, and is the core selling point of this type of terminal
-Shell: Flame retardant plastic, available in two colors: black and red. Red and black are generally used to distinguish between positive and negative poles; Some models come with transparent protective covers to prevent electric shock and dust.
-Polarity: There are different numbers of digits such as 2P, 3P, 4P in the diagram (connected by 2, 3, and 4 digits), which are connected by screw compression.
1. * * Wall penetrating structure * *: The terminal body can be clamped on the partition of the chassis/cabinet, allowing wires to enter and exit at the same time, achieving conductivity on both sides of the cabinet without piercing the entire cable.
2. High current: 50-150A, suitable for lithium battery energy storage, inverters, power supplies, distribution cabinets, and industrial control equipment.
3. Screw tight wiring, conductive copper piece H62 brass, flame-retardant insulation shell.
4. Multiple poles are optional, and the red and black color scheme is convenient for distinguishing positive and negative poles, commonly used in DC energy storage devices.
