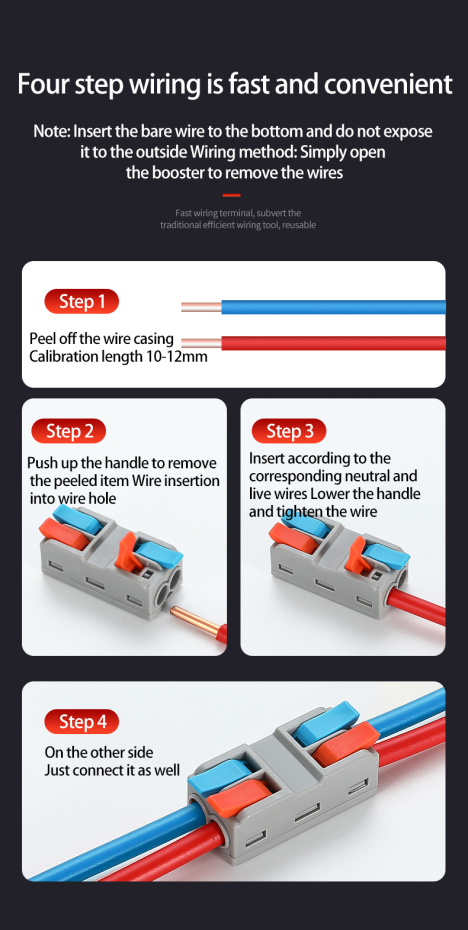

The quick wiring method uses a spring type connection, which is simpler and more convenient to use compared to traditional wiring methods, improving work efficiency. Here are some steps for quick wiring:
Firstly, confirm that the power has been turned off to ensure safety.
Inserting wires: Use wire stripping pliers to strip a certain length of the outer skin of the wire. The exposed wire should be marked with the corresponding color and length, and inserted into the connector hole of the corresponding color and length. When inserting, gently rotate the wire at the end to ensure that the wire twists and gets stuck.
Fixed wire: After inserting the wire, hold down the spring on the connector and secure the wire tightly. The entire process does not require twisting the wires or tightening screws, and fixing the wires can be completed quickly.
Tensile testing: Finally, a tensile test is required, applying a moderate amount of tension with appropriate tools to ensure that the wire is firmly secured and not pulled out. Then, it should be ensured that the connection is successful, and electrical testing should be conducted as needed.
Overall, the process of quickly connecting wires is simple, fast, and convenient, which can effectively improve work efficiency and safety when operated correctly.
