Feedaa® is a manufacturer of Fast Wire Cable Connectors | Splicing series in China. We have more than ten years of experience in the field of terminal terminals and the specifications and WAGO models are complete. For example, series 221, 222, 2273, etc. Excellent quality and good price. It is available in both wholesale and retail markets. Welcome to purchase and cooperate!

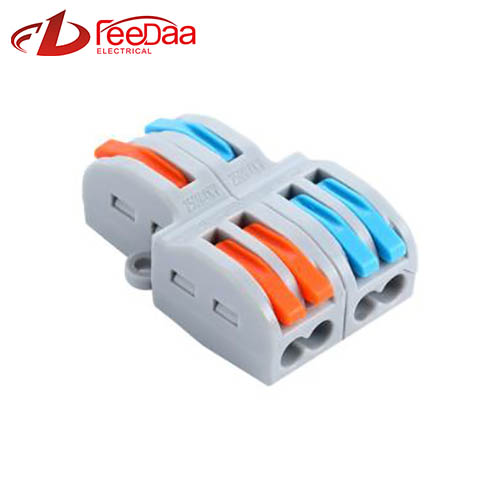

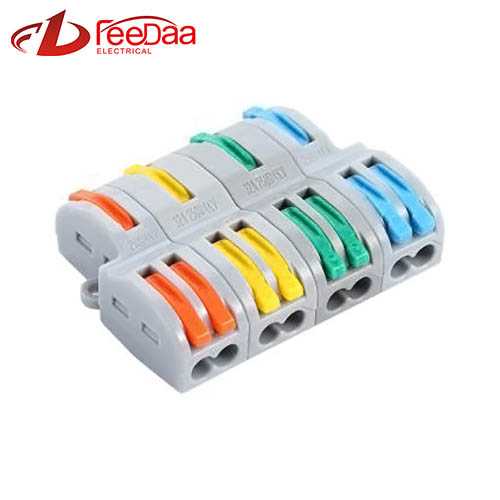

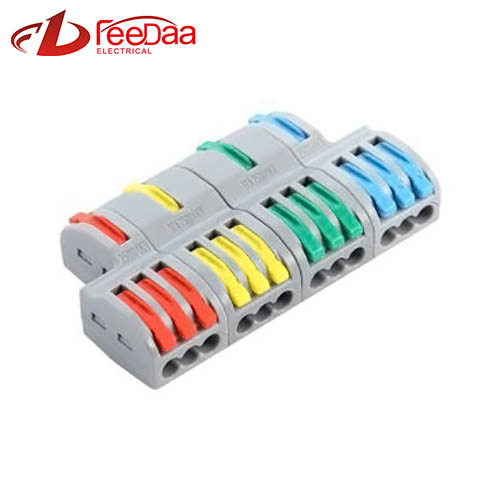

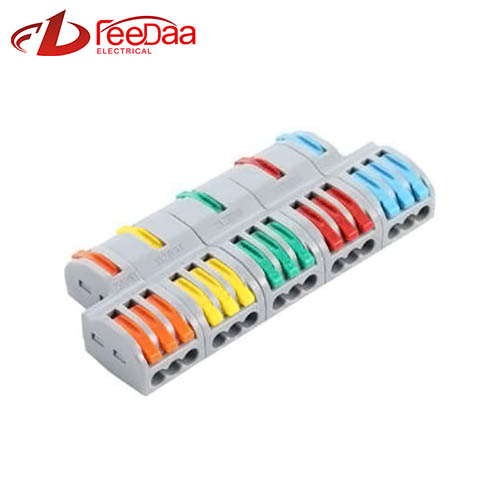

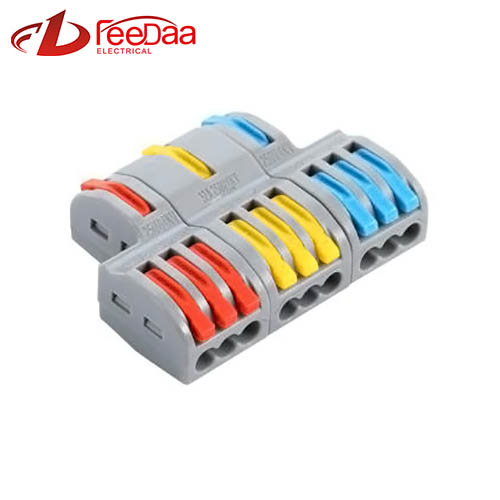

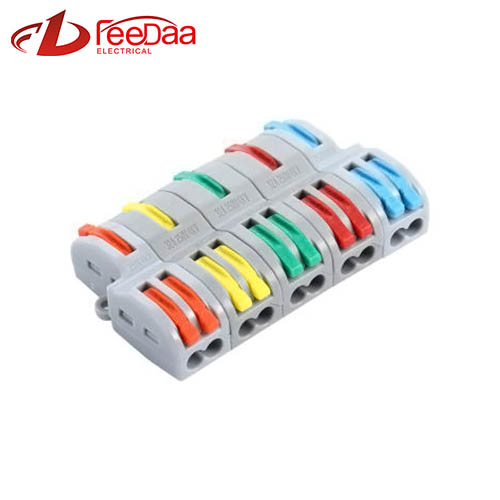

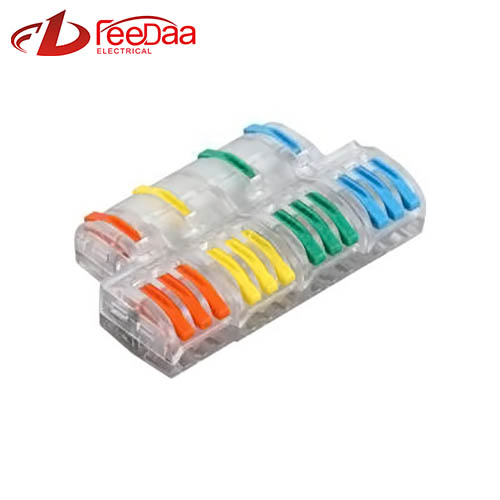

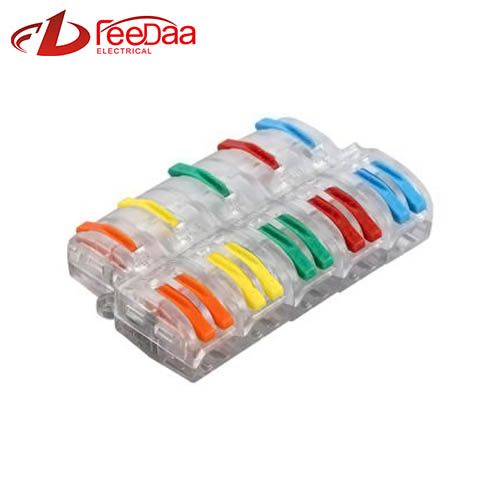

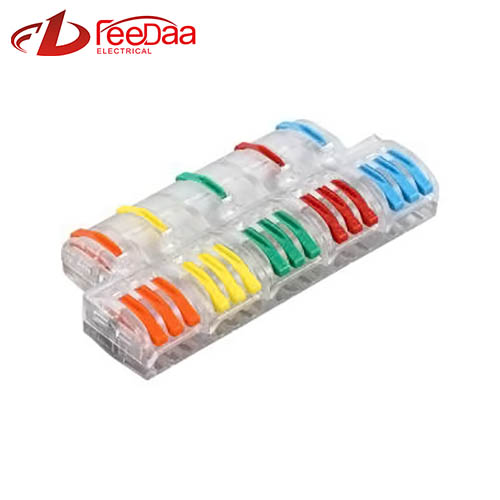

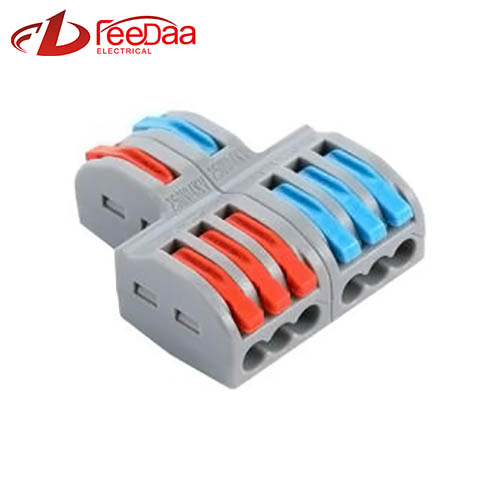

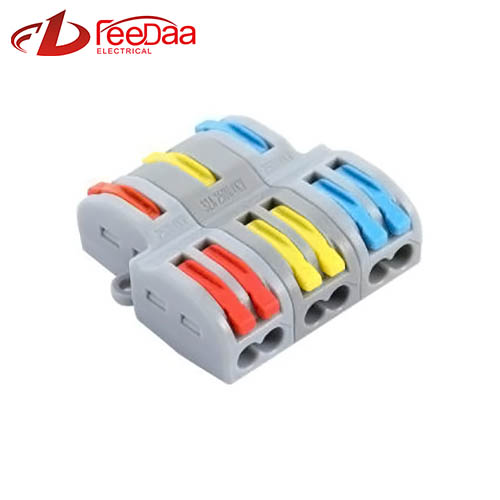

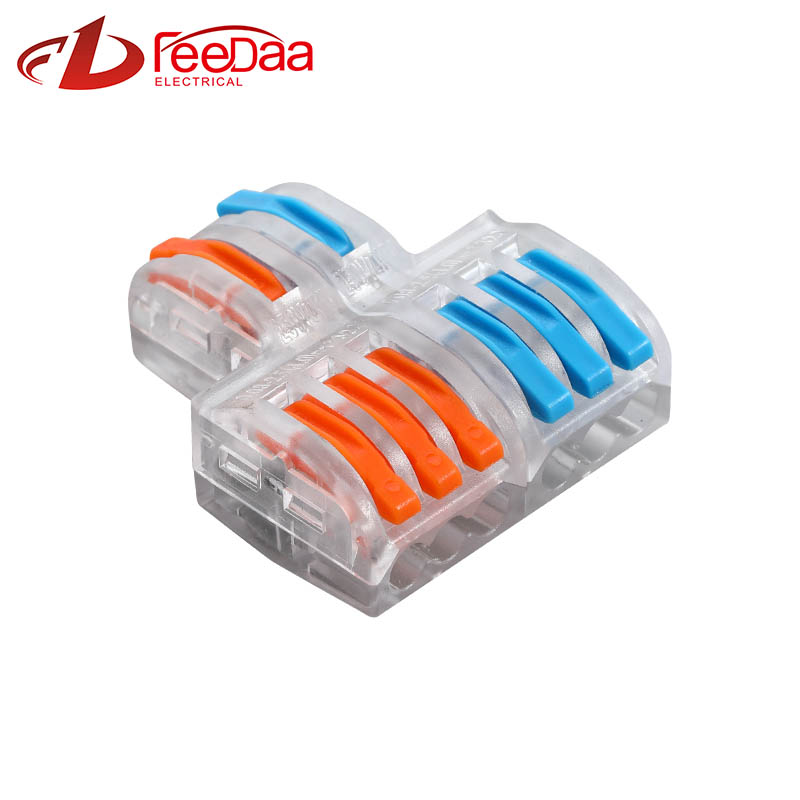

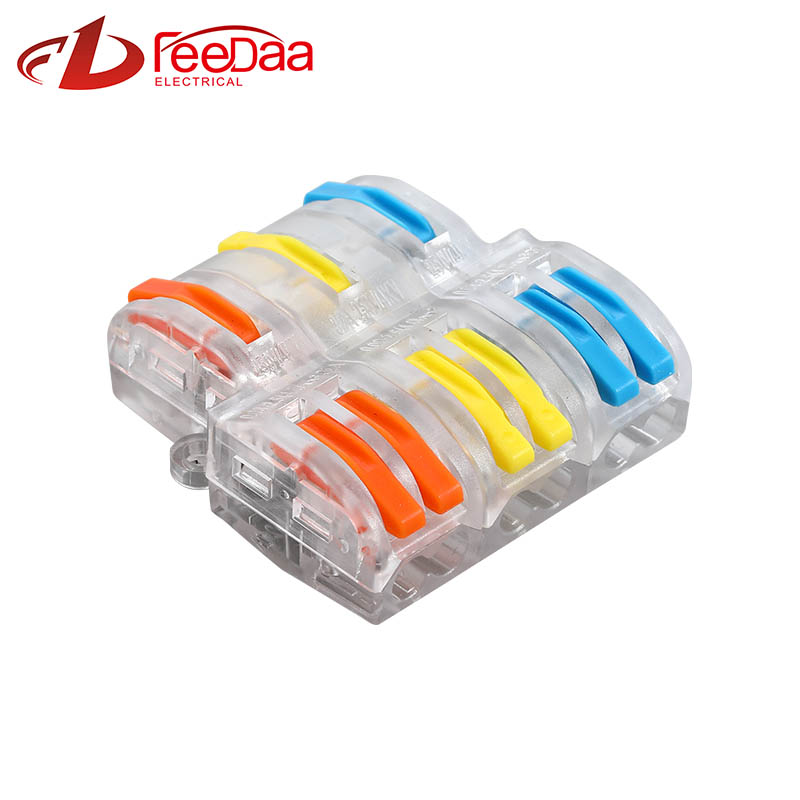

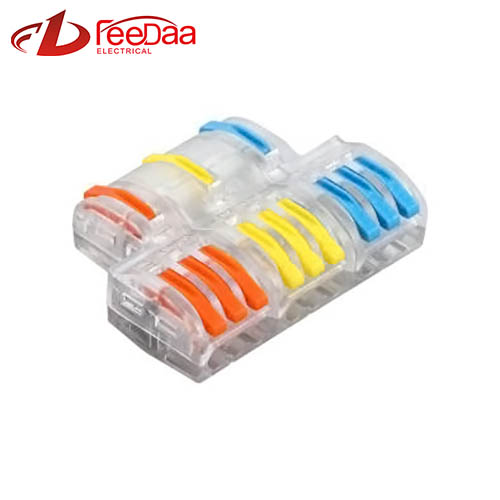

FeeDaa® specializes in producing the Fast Wire Cable Connectors | Splicing series, the connector shell is made of flame-retardant nylon PA66/PC new material, and the inner guide is made of all copper. It can be used for both soft and hard wires, There are multiple inputs and multiple outputs such as 2 in 4 out, 2 in 6 out, 3 in 6 out, 3 in 9 out, 4 in 8 out, etc, and the wiring range is 0.08-2.5mm² (Single hard conductor), 0.08-4.0mm² (Multi-strand flexible conductor), safer, more convenient, and faster than traditional wiring methods in the past.Card slots have been set up, allowing for easy assembly and disassembly as needed. Easy as building blocks.
Safe and Durable: The shell of the FeeDaa® cable connector is made of flame-retardant nylon PA66/PC new material to prevent wire leakage and explosion. Corrosion resistance, aging resistance, and long service life. The built-in copper can be used at an ambient temperature of 110℃ and has better conductivity.
Efficient and convenient: Fast wiring, no tools required, no damage to the core wire. Simply peel off approximately 9-10mm of the wire casing, open the handle to 90°, insert the wire into the connection port, and press the handle with your hand to complete the wiring. There is no need to worry about twisting between wires. The FeeDaa® connector will make work easier and wiring more aesthetically pleasing.
Compatibility: FeeDaa®'s Fast Wire Cable Connectors | Splicing series can be used for both soft and hard wires, making it ideal for compact and complex applications. Suitable for single strand hard wire 0.08-2.5mm², Multi-strand flexible conductor 0.08-4.0mm².
|
Model number |
FD-24, FD-26, FD-36, FD-39, FD-48, FD-412, FD-510, FD-515 |
|
Electrical parameter |
250V/4kV/32A |
|
Stripping length |
9-10mm |
|
Specification size |
FD-24:39*25.6*14.5mm FD-26:39*34.7*14.5mm FD-36:39*37*14.5mm FD-39:39*51*14.5mm FD-48:39*51*14.5mm FD-412:39*70*14.5mm FD-510:39*79*14.5mm FD-515:39*88*14.5mm |
|
Applicable conductor |
Single hard conductor: 0.08-2.5mm2 Multi-strand flexible conductor: 0.08-4.0 mm2 |
|
Material |

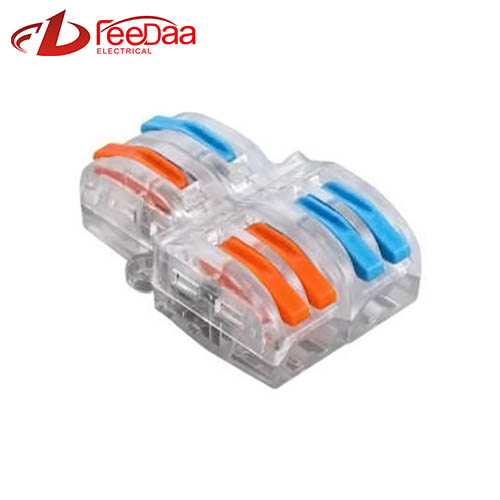

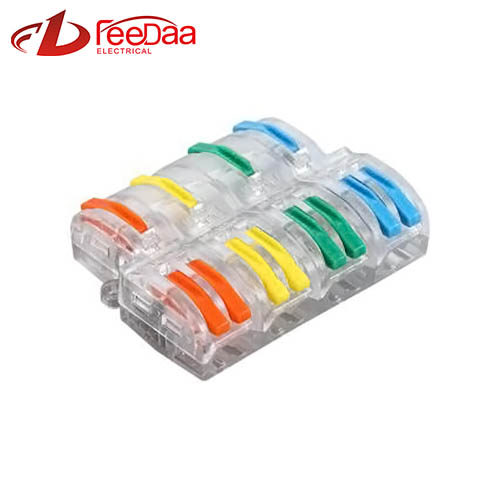

Flame resistant Nylon PA66, also available in PC material, Copper trim |
|
Color |
Various color handles available for selection |
|
customized |
Accept customization |
|
Brand Name |
FeeDaa |
|
Place of Origin |
China |
|
Market |
Global |
|
Minimum Order Quantity |
100pcs |
|
Packaging Details |
poly-bag, carton box |
|
Delivery Time |
3- 20days |
|
Payment Terms |
T/T, Paypal, Western Union, etc |
Fast Wire Cable Connectors| Splicing series, commonly used scenarios include lighting, electronics, elevators, cars, equipment, household appliances, electrical control systems, etc.
Note: this type of internal conductor connected with each other, the current exchange inlet can only be connected with the same property of the wire (such as fire wire or zero wire).
